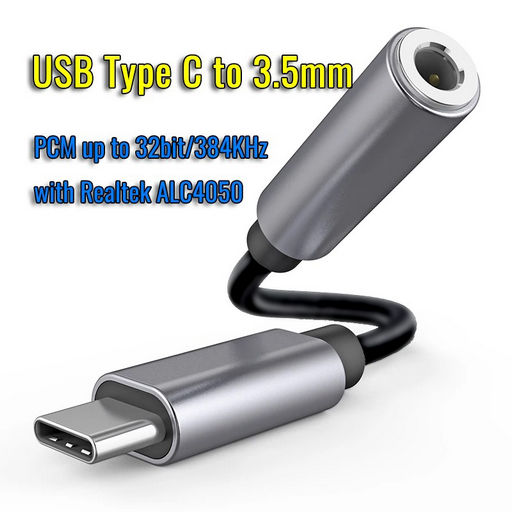

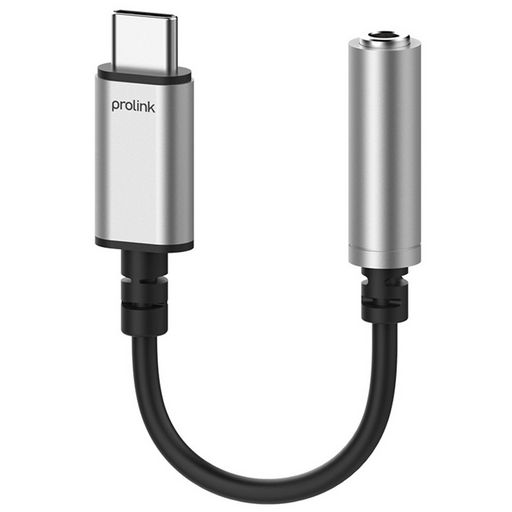

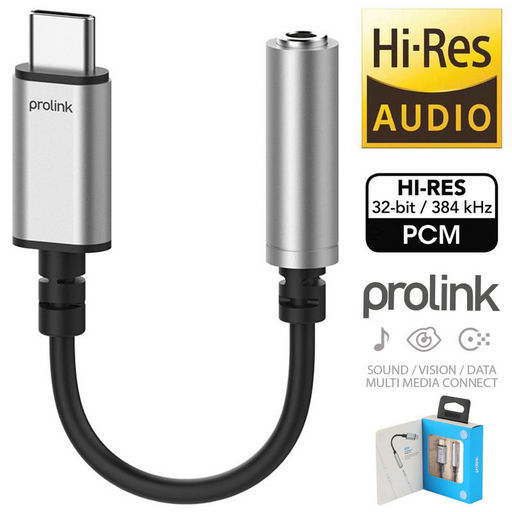

USB-C TO 3.5MM QUAD AUDIO ADAPTOR HI-RES
Code
PF108
Description
USB Type-C Male to 3.5mm Audio adaptor
Colour
Metallic grey
Length
0.1M
Manufacturer
Prolink
Plug
USB-C;3.5mm
Plug 1
USB-C
Plug 2
3.5mm
Tags
USB Type-C, 3.5mm, adaptor
Qty
Cost Inc GST
Cost Ex GST
ORDER CODE:
PF108
STOCK STATUS
INSTOCK
QTY
HD-AUDIO 32BIT
High Resolution Realtek ALC4050 PCM output at 32bit 384KHz max. 20Hz-80KHz, >95dB DNR SNR Reduced power consumption (by 50%) Wide compatability Android OTG 4 Pin 3.5mm stereo audio output *Line Control Compatible & Microphone Mac & PC PnP Compatible (Optional USB3 Adaptor CA3110)
Wide USB/USB-C Compatability:
TX-384Khz Hifi Type-C Audio
USB Audio 2.0 Compatible (PnP)
Windows 10 and Ipad, iMac, Macbook tested OK.
DOS, Linux compatability unknown, research Realtek ALC4050
PCM Tested 16bit/24bit/32bit up to 384kHz. Not direct DSD Compatible.
Android and iPhone tested OK with OTG turned On for control features.

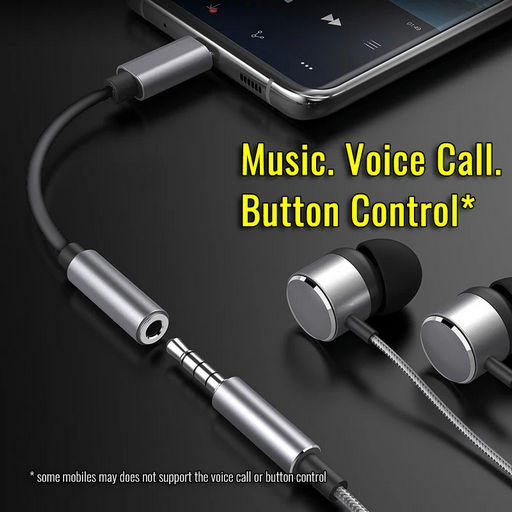

Supporting most phone control features, except some Samsung and LG.
*Suitable for a wide range of USB-C devices and is compatible with most Samsung including Galaxy S23 / S22 / S21 / S20, iPad Mini 2021 / Pro, MacBook Pro / Air, iPhone 15, Oppo, OnePlus, Google Pixel 8 / 7 / 6 and many more devices. LG is not supported.
*Specifications as of 2024, may change without notice. Current stock details built on ALC4050 chipset and may upgrade without notice.
HD-AUDIO 32BIT
High Resolution Realtek ALC4050 PCM output at 32bit 384KHz max. 20Hz-80KHz, >95dB DNR SNR Reduced power consumption (by 50%) Wide compatability Android OTG 4 Pin 3.5mm stereo audio output *Line Control Compatible & Microphone Mac & PC PnP Compatible (Optional USB3 Adaptor CA3110)
Wide USB/USB-C Compatability:
TX-384Khz Hifi Type-C Audio
USB Audio 2.0 Compatible (PnP)
Windows 10 and Ipad, iMac, Macbook tested OK.
DOS, Linux compatability unknown, research Realtek ALC4050
PCM Tested 16bit/24bit/32bit up to 384kHz. Not direct DSD Compatible.
Android and iPhone tested OK with OTG turned On for control features.
Supporting most phone control features, except some Samsung and LG.
*Suitable for a wide range of USB-C devices and is compatible with most Samsung including Galaxy S23 / S22 / S21 / S20, iPad Mini 2021 / Pro, MacBook Pro / Air, iPhone 15, Oppo, OnePlus, Google Pixel 8 / 7 / 6 and many more devices. LG is not supported.
*Specifications as of 2024, may change without notice. Current stock details built on ALC4050 chipset and may upgrade without notice.
No downloads currently available for this product.
Please contact us with your download requirements,e.g. User Manual, Data Sheet, etc and will get back to you.
Full Name*
Enter Full Name
Email*
Enter Email Address
Enter Valid Email
Phone*
Enter Phone Number
Enter the code
Invalid code
3973
Download Required / Comments*
Chars Remaining
Download Required / Comments.
Submit
Reset
Thanks for your download enquiry. Our Customer Sales Team will be in contact with you Shortly.
Full Name*
Enter Full Name
Email*
Enter Email Address
Enter Valid Email
Phone*
Enter Phone Number
Enter the code
Invalid code
3973
Question*
Chars Remaining
Enter The Question
Thanks for your enquiry. Our Customer Sales Team will be in contact with you Shortly.
Contact us for Bulk Buy and Project Based Pricing for USB-C TO 3.5MM QUAD AUDIO ADAPTOR HI-RES
Product Code
Full Name*
Enter Full Name
QTY Required *
Enter QTY
Email*
Enter Email Address
Enter Valid Email
Delivery Time *
Enter Delivery Time
Phone*
Enter Phone Number
Target Price
Notes / Addtional Info.
Chars Remaining
Enter The Notes / Addtional Info.
Enter the code
Invalid code
3973
Submit
Reset
Thanks for your Bulk Buy enquiry. Our Customer Sales Team will be in contact with you Shortly.
USB-C TO 3.5MM QUAD AUDIO ADAPTOR HI-RES
Order Code
QTY
Description
PF108
1

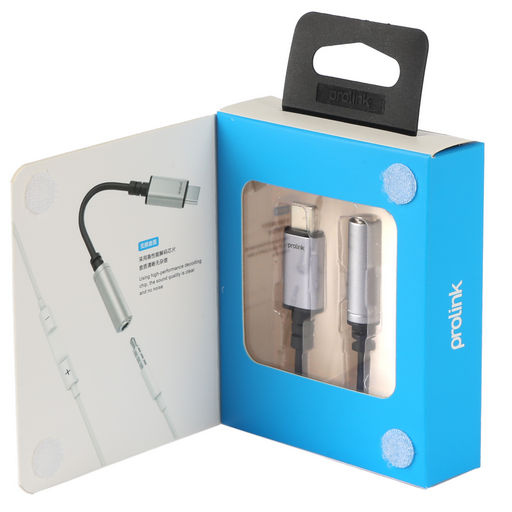

USB-C to 3.5mm analogue adaptor supports high-fidelity audio up to 32bit 384KHz. Quad plug supported for control and microphone*. Quality build aluminium alloy with flexible OFC lead. Premium Prolink Packaging Box Hanger.
