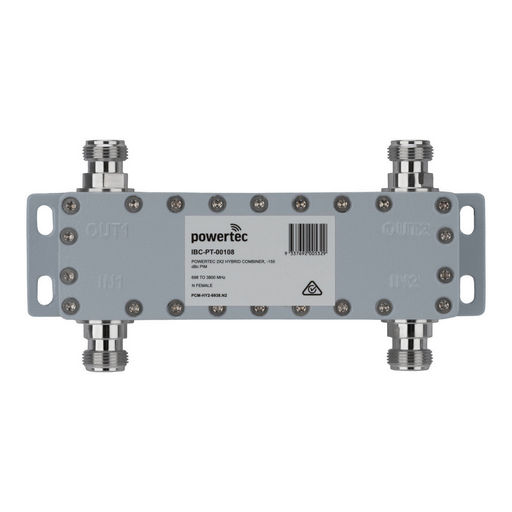

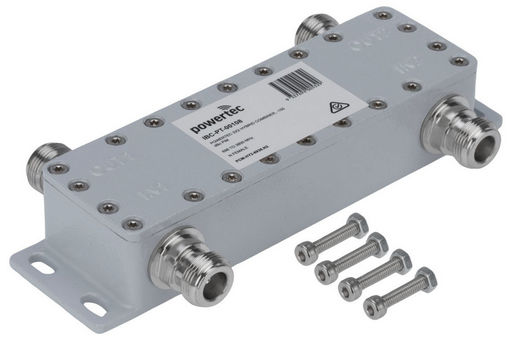

2X2 PORT HYBRID COMBINER N FEMALE
Code
IBC-PT-00108
dBc
-155dBc
Dimensions
159x102x30mm
Freq.
698-3800MHz
Impedance
50Ω
Input
2x N-Female
Insertion Loss
≤0.25dB
IP Rating
IP67
Manufacturer
Powertech
Output
2x N-Female
VSWR
≤1.25:1
Qty
Cost Inc GST
Cost Ex GST
ORDER CODE:
IBC-PT-00108
STOCK STATUS
Please Call
700-3800MHz
Hybrid Couplers are used to develop advanced RF transmission systems where interaction-free signal combining is required. 2x2 couplers are typically used as an effective means of combining two radio carriers. The unit has two input ports which feed two coupled output ports.
This 2x2 Hybrid Coupler has been developed for use as a 4G-5G MNC in passive in-building coverage systems, along with supporting high powered defence and aerospace technologies. The unit supports a wide frequency range from 700 to 3800 MHz, extremely low intermodulation with a -155 dBc PIM rating, and using latest generation 4.3-10 connectors.
Covers 4G/5G frequencies from 700 to 3800 MHz. 2x2 Matrix for 3 dB interaction-free coupling. Low PIM -153 dBc. Integrated cast aluminium mounting bracket. IP67 ingress protection rated.
700-3800MHz
Hybrid Couplers are used to develop advanced RF transmission systems where interaction-free signal combining is required. 2x2 couplers are typically used as an effective means of combining two radio carriers. The unit has two input ports which feed two coupled output ports.
This 2x2 Hybrid Coupler has been developed for use as a 4G-5G MNC in passive in-building coverage systems, along with supporting high powered defence and aerospace technologies. The unit supports a wide frequency range from 700 to 3800 MHz, extremely low intermodulation with a -155 dBc PIM rating, and using latest generation 4.3-10 connectors.
Covers 4G/5G frequencies from 700 to 3800 MHz. 2x2 Matrix for 3 dB interaction-free coupling. Low PIM -153 dBc. Integrated cast aluminium mounting bracket. IP67 ingress protection rated.
