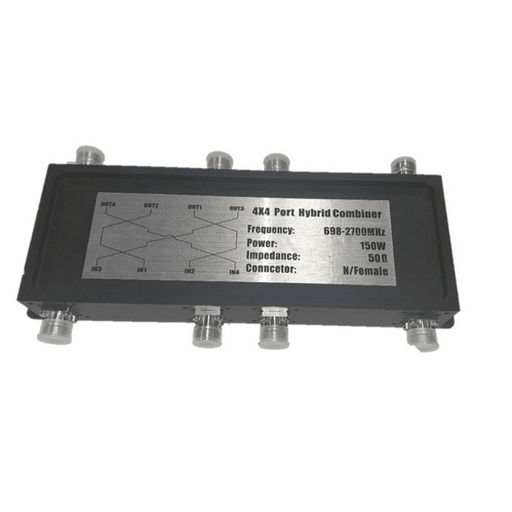

4X4 PORT HYBRID COMBINER N FEMALE
Code
ACC-BH-00017
Description
Blackhawk 4X4 Hybrid Combiner N/F
Cellular
4G
dBc
-153dBc
Description Extended
The Blackhawk range of power splitters are ideal for connecting multiple devices to a single antenna. Ideal for M2M modems, mobile broadband routers, and USB modems with external antenna ports.
Device Type
Connector
Dimensions
274x93x33mm
Freq.
700-2700MHz
Impedance
50Ω
Input
4x N-Female
Insertion Loss
≤0.5dB
IP Rating
IP65
Manufacturer
Blackhawk
Output
4x N-Female
Power
150W
Type
Combiner
VSWR
≤1.25
Qty
Cost Inc GST
Cost Ex GST
ORDER CODE:
ACC-BH-00017
STOCK STATUS
INSTOCK
QTY
4 INPUTS TO 4 OUTPUTS 700-2700MHz
Covers 4G frequencies from 700 to 2700 MHz. 6 dB Coupling across four outputs (25:25:25:25%). Low PIM -153 dBc. 4x N Female input and 4x N Female output ports.
The Powertec ACC‑BH‑00017 4×4 Hybrid Combiner is a wideband (700–2700 MHz), low‑PIM, IP65‑rated RF combining matrix designed to merge up to four radio or BTS outputs and evenly distribute their combined signals across four antenna or DAS feed lines. Using internal hybrid couplers, it maintains isolation, phase balance, and low return loss while supporting high‑power operation up to 150 W per port. Each of the four N‑Female inputs is split across all four outputs, allowing multi‑band, multi‑carrier, or multi‑operator signals to be delivered uniformly to multiple antennas, making it ideal for LTE/5G macro sites, DAS deployments, and neutral‑host systems requiring stable, low‑intermodulation RF combining.
4 INPUTS TO 4 OUTPUTS 700-2700MHz
Covers 4G frequencies from 700 to 2700 MHz. 6 dB Coupling across four outputs (25:25:25:25%). Low PIM -153 dBc. 4x N Female input and 4x N Female output ports.
The Powertec ACC‑BH‑00017 4×4 Hybrid Combiner is a wideband (700–2700 MHz), low‑PIM, IP65‑rated RF combining matrix designed to merge up to four radio or BTS outputs and evenly distribute their combined signals across four antenna or DAS feed lines. Using internal hybrid couplers, it maintains isolation, phase balance, and low return loss while supporting high‑power operation up to 150 W per port. Each of the four N‑Female inputs is split across all four outputs, allowing multi‑band, multi‑carrier, or multi‑operator signals to be delivered uniformly to multiple antennas, making it ideal for LTE/5G macro sites, DAS deployments, and neutral‑host systems requiring stable, low‑intermodulation RF combining.
Please contact us with your download requirements,e.g. User Manual, Data Sheet, etc and will get back to you.
Full Name*
Enter Full Name
Email*
Enter Email Address
Enter Valid Email
Phone*
Enter Phone Number
Enter the code
Invalid code
2253
Download Required / Comments*
Chars Remaining
Download Required / Comments.
Submit
Reset
Thanks for your download enquiry. Our Customer Sales Team will be in contact with you Shortly.
Full Name*
Enter Full Name
Email*
Enter Email Address
Enter Valid Email
Phone*
Enter Phone Number
Enter the code
Invalid code
2253
Question*
Chars Remaining
Enter The Question
Thanks for your enquiry. Our Customer Sales Team will be in contact with you Shortly.
Contact us for Bulk Buy and Project Based Pricing for 4X4 PORT HYBRID COMBINER N FEMALE
Product Code
Full Name*
Enter Full Name
QTY Required *
Enter QTY
Email*
Enter Email Address
Enter Valid Email
Delivery Time *
Enter Delivery Time
Phone*
Enter Phone Number
Target Price
Notes / Addtional Info.
Chars Remaining
Enter The Notes / Addtional Info.
Enter the code
Invalid code
2253
Submit
Reset
Thanks for your Bulk Buy enquiry. Our Customer Sales Team will be in contact with you Shortly.
4X4 PORT HYBRID COMBINER N FEMALE
Order Code
QTY
Description
ACC-BH-00017
1
A 4×4 hybrid combiner designed for 700–2700 MHz systems, engineered for ultra‑low PIM, ≤0.5 dB insertion loss, and 150 W per‑port power handling, featuring N‑female connectors and an IP65 enclosure for reliable indoor or outdoor RF deployment.
