The LevelOne USB-0402 is a Gigabit USB type C Network Adapter that enables desktop and notebook computers with high-speed Gigabit network connectivity via the USB port. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port when physical connection to a network is needed. The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.

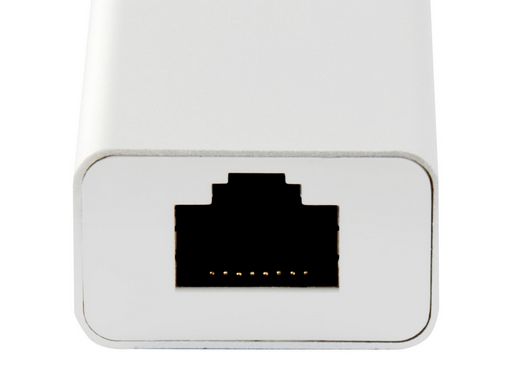

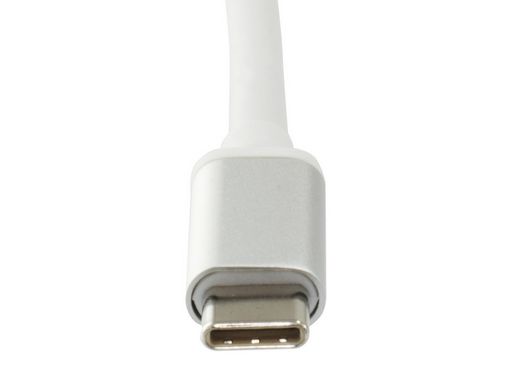

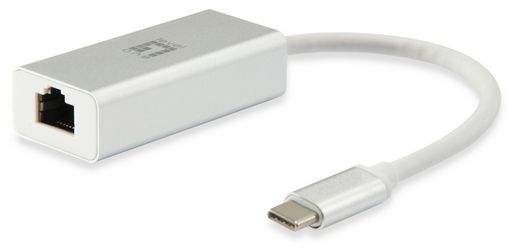

USB-C TO ETHERNET GIGABIT - LEVEL1

USB-0402











USB-C TO ETHERNET GIGABIT - LEVEL1




Code USB-0402
Description Gigabit USB-C Network Adapter
Colour Iron-gray
Content USB-0402 Quick Installation Guide
Dimensions 217x28.5x17.5mm
Manufacturer LevelOne
OEM 54003107
Packaging Colour Box
Suits USB-0503-V1 USB-0401-V4 USB-0502-V1
UPC 846359047873
Weight 0.026
Plug USB-C;Ethernet
Plug 1 USB-C
Plug 2 Ethernet
Wagner eBook 04-77, 04-132, 04-141
WES eBook 04-77, 04-132, 04-141


ORDER CODE:
USB-0402

STOCK STATUS
INSTOCK

QTY

buy

LEVELONE
Gigabit USB-C Network Adapter
The LevelOne USB-0402 is a Gigabit USB type C Network Adapter that enables desktop and notebook computers with high-speed Gigabit network connectivity via the USB port. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port when physical connection to a network is needed. The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.

  • 9K jumbo frames to increase data transfer rates
  • Built-in Wake-on-LAN feature to startup computers remotely
  • Supports IPv4/IPv6 network operation

  • Standards & Protocols: IEEE 802.3: 10Base-T (Ethernet) IEEE 802.3u: 100Base-TX (Fast Ethernet) IEEE 802.3ab: 1000Base-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3az Energy Efficient Ethernet Connector: USB 3.1 Type C Port: 1 x 10/100/1000Base-T Auto-MDIX RJ-45 port Power Consumption (W): Operating Mode: 2W Suspend Mode: 0.19W Power Input: USB Bus -powered DC5V/3A Ethernet: 10Mbps (Half/Full Duplex) Fast Ethernet: 100Mbps (Half/Full Duplex) Gigabit: 1000Mbps (Half/Full Duplex) IPv4/IPv6 network operation Power: Wake-on-LAN 150*25*15 mm 25.4 g Windows XP/Vista/7/8/10 Mac OS 10.6/7/8/9/10




    DescriptionFileSize
    Datasheet USB-0402.pdf 242 KB
